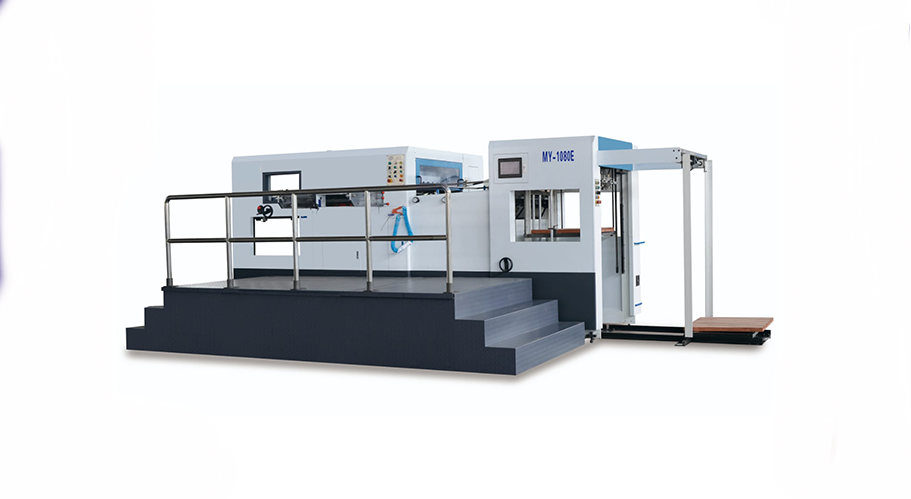

Automatic Die Cutting And Creasing Machine, which is fitted with creasing dies, side wheel adjustment is provided for increasing and decreasing the height as per requirement. This is basically special equipment applying to die-cutting of advanced coloured boxes made of paper and Paper Board. In order to ensure performance & sturdy construction, this machine is tested on various industry norms.
| Model | MY-1500A |
| Max. Paper Size | 1500×1105mm |
| Min. Paper Size | 500×420mm |
| Max. Cutting Size | 1480×1090mm |
| Max. Pressure | 350Tons |
| Sheet Thickness | Carboard250-2500g/m2 Corrugated Board< 8mm (max.thickness)> |
| Max.Cutting Speed | 5000sheets/h |
| Die-Cutting Precision | ±0.18mm |
| Min. Gripper Edge | 8mm |
| Max. feeding Pile Height | 1650mm |
| Max. Delivery Pile Height | 1500mm |
| Total power | 20 KW |
| Weight | 20 Tons |
| Overall Dimension | 7900×4600×2600mm |
