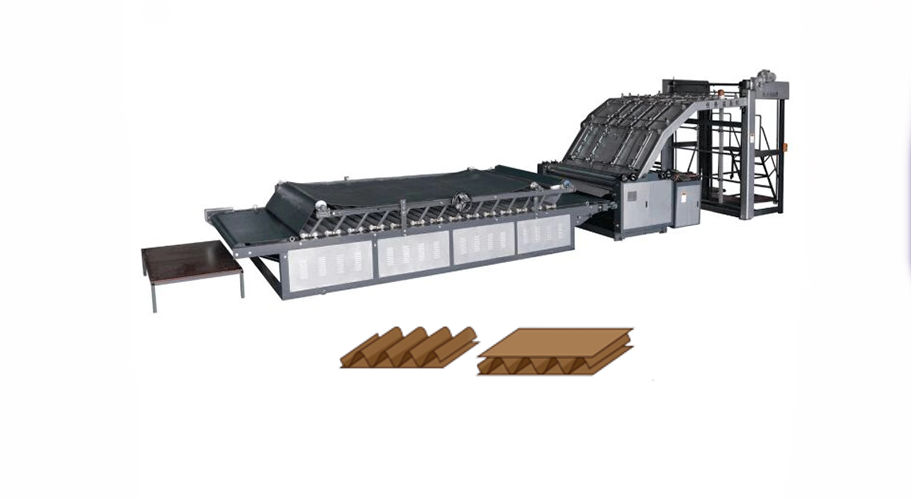

Semi Automatic Flute Laminator Machine which is manufactured strictly as per the specifications of our clients. These machines are highly reliable for longer service life and gives and excellent performance. We tested these machines with the help of our diligent quality auditors in order to ensure their flawlessness and greater operational efficiency.
This machine is suitable for lamination of top paperboard to bottom paperboard above 350g.m2 or 2 ply board of A/B/C/E/F flute to from a corrugated cardboard. (Automatic feeding for bottom sheet and manual top sheet).
| Model | YB-1300A-II | YB-1450A-II | YB-1550A-II | YB-1650A-I |
| Max size of laminating | 1300mm×1250mm | 1400mm×1250mm | 1500mm×1250mm | 1600mm×1250mm |
| Min size of laminating | 360mm×360mm | 360mm×360mm | 360mm×360mm | 360mm×360mm |
| Top paper thickness | 140-800g | 140-800g | 140-800g | 140-800g |
| Bottom sheet thickness | 2/4 ply A/B/C/E/F Flute | 2/4 ply A/B/C/E/F Flute | 2/4 ply A/B/C/E/F Flute | 2/4 ply A/B/C/E/F Flute |
| Economic speed | 0-100 Piece/min | 0-100 Piece/min | 0-100 Piece/min | 0-100 Piece/min |
| Laminating precision | ±1mm | ±1mm | ±1mm | ±1mm |
| Power | 7KW | 7.5KW | 7.5KW | 7.5KW |
| Size | 10m×2m×2.2m | 10m×2.1m×2.2m | 10m×2.2m×2.2m | 10m×2.3m×2.2m |
| Weight | About 3.5t | About 4t | About 4t | About 4t |
